Model #597IR Premium Automotive DMM Includes the #EST-100IT Thermometer Adapter
- Highest Quality Auto-Ranging DMM Designed for Automotive Trouble Shooting
- 18 Test Functions, 48 Test Ranges
- Peak Min/Max Records Transient Voltages As Fast As 1 Millisecond
- Min/Max Mode Records Variations In All Functions
- Exclusive Non-Contact IR Thermometer Adapter Included - 1022F/550C Max Temp Readings
- Also Measures Temperature Via Temp Probe In Both F and C
- Milliseconds Pulse Width Measures Fuel Injector ON-TIME
- Inductive RPM Readings For Both DIS And Conventional Ignitions
- Desirable 20 Amp Test Range-Dual Fuse Protection
- Modern Design, The Protective Holster Is Built Into The Housing
- Data Hold, Auto Power-Off, + Trigger Adjust
- Large LCD Display w/White LED Backlighting and 40 Segment Analog Bar Graph

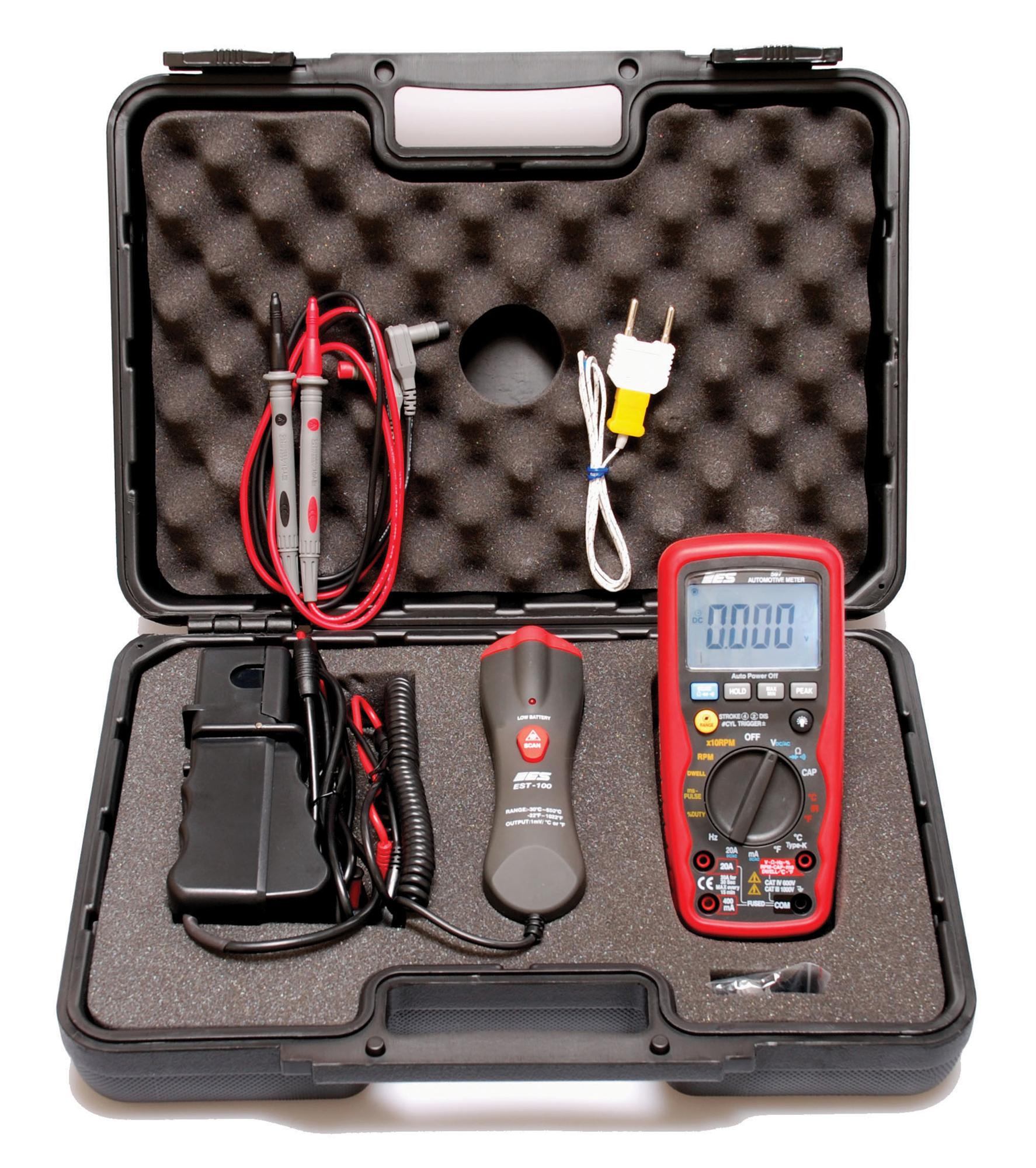

- Blow Mold Case, Test Leads, IR Thermometer Adapter, K-Type Temp Probe, Inductive RPM Clamp, and Instructions Included
Test Functions:
- AC/DC Voltage
- Resistance
- AC/DC Current
- Non-Contact IT Temp in F & C
- Temp Via Contact Probe F & C
- RPM & (DIS) RPM
- Milliseconds Pulse Width
- Dwell (Direct)
- Frequency (Hz)
- Duty cycle
- Capacitance
- Diode Test
- Continuity
Test Ranges:
- DC Volts: 0-400mV, 4V, 40V, 400V, 600V
- AC Volts: 0-4V, 40V, 400V, 600V
- DC Amps: 0-40mA, 400mA, 20A
- AC Amps: 0-40mA, 400mA, 20A
- Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
- Capacitance: 0-4nF, 40nF, 400nF, 4uF, 400uF, 4mF, 40mF
- Frequency: 0-2kHz, 40kHz, 400kHz, 40MHz
- Duty Cycle: 0.1% - 99.9%
- Pulse Width: 1.0-20.0mS
- Type K Temp: -22F to 1832F, -30C to 1000C
- IR Temp: -22F to 1832F, -30C to 550C
- RMP: 0-4000 RPM, 0-12000 RPM x 10
- RPM (DIS): 0-4000 RPM, 0-6000 RPM x 10
- Dwell: 4 cyl, 5 cyl, 6 cyl, 8 cyl
- Continuity: Continuity Beep - under 50 Ohms
- Diode: Diode Test
