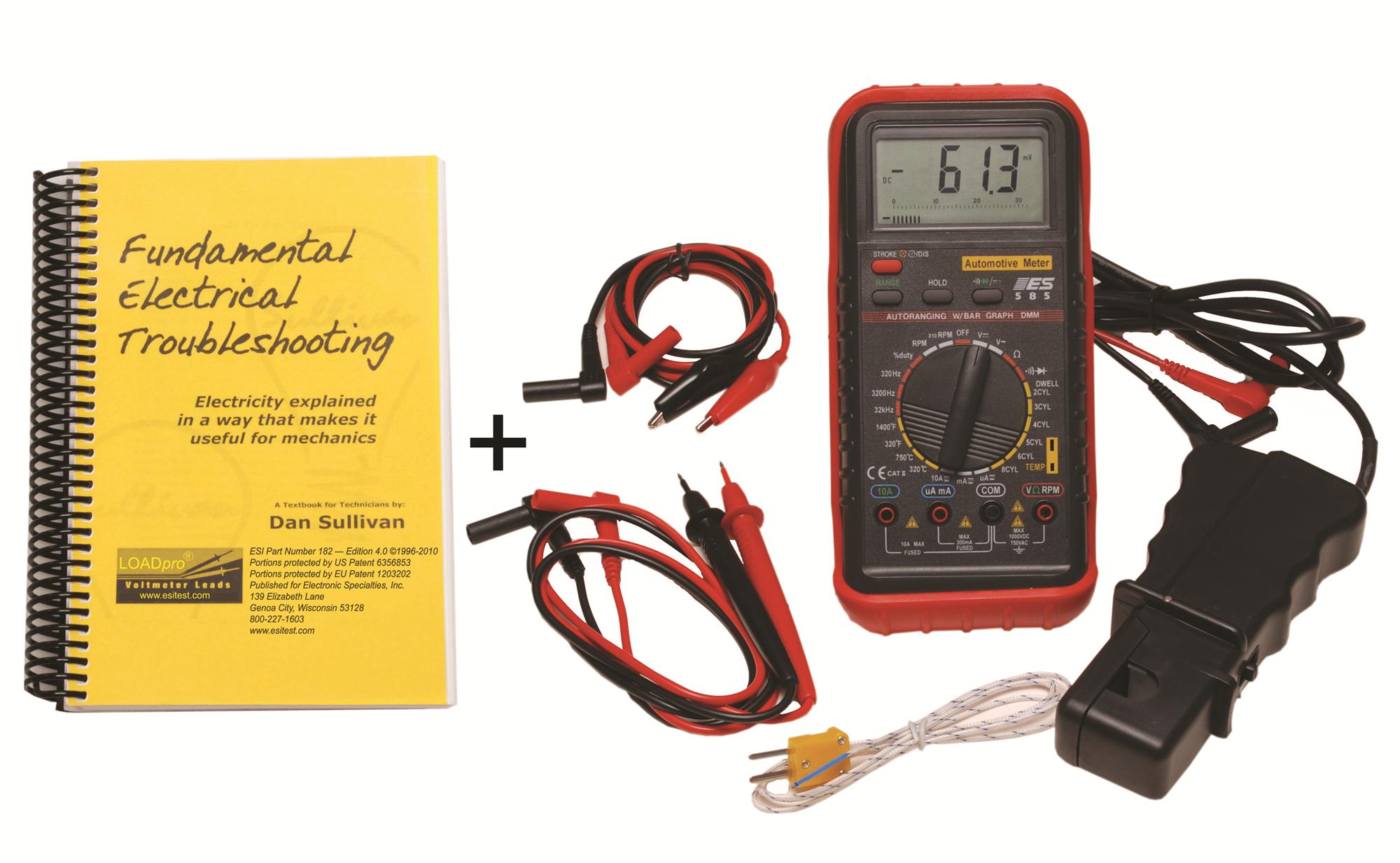

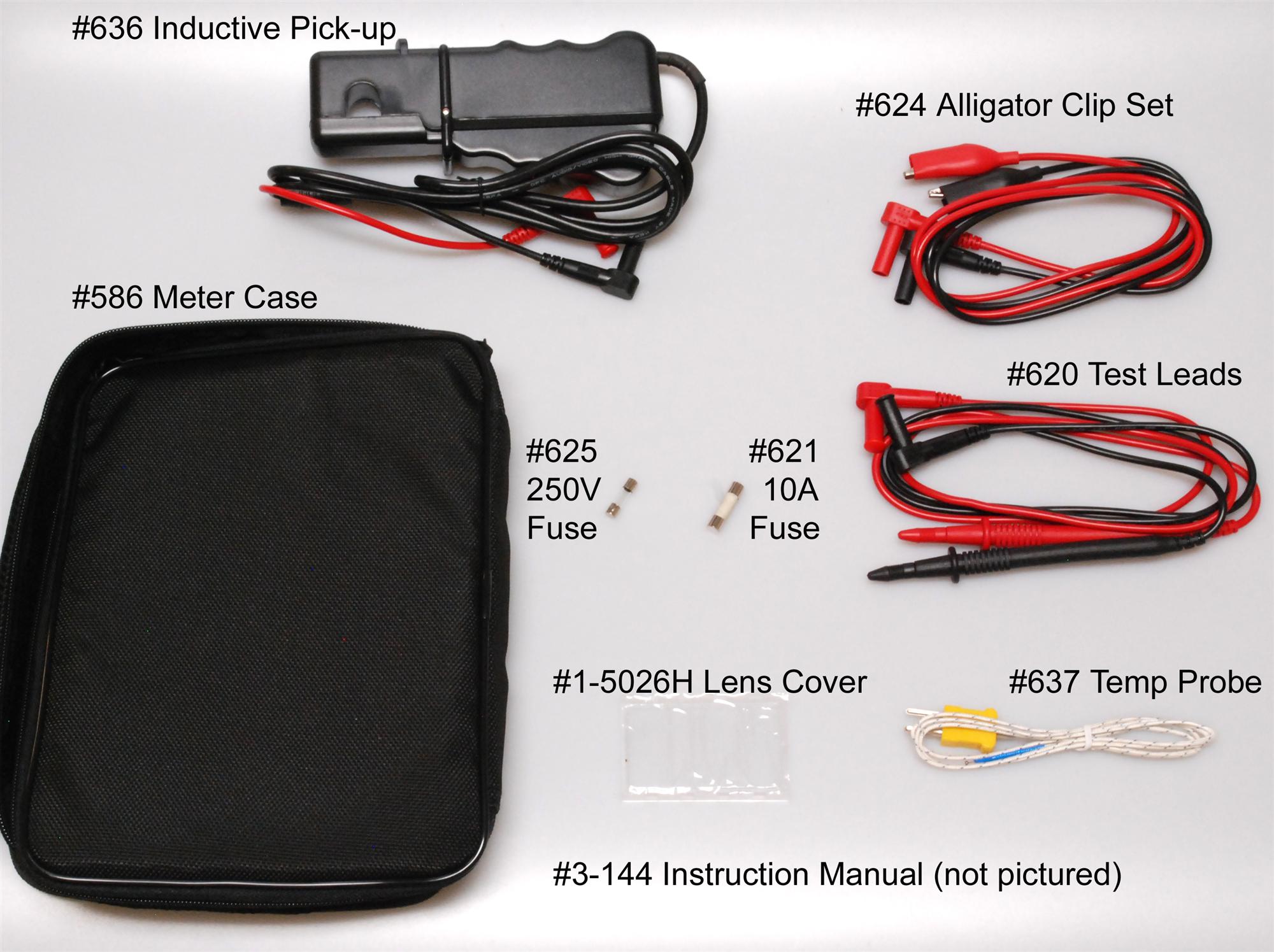

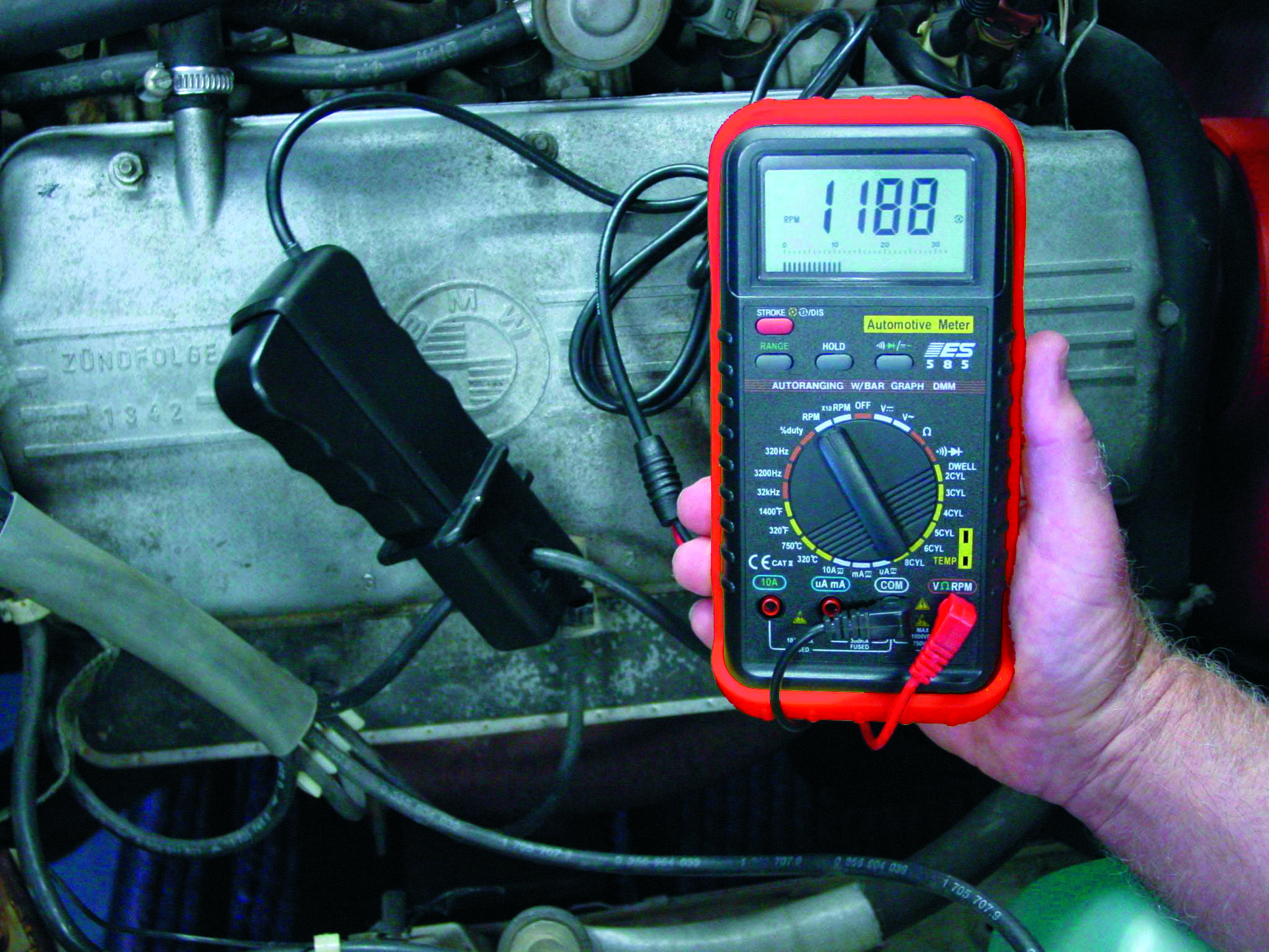

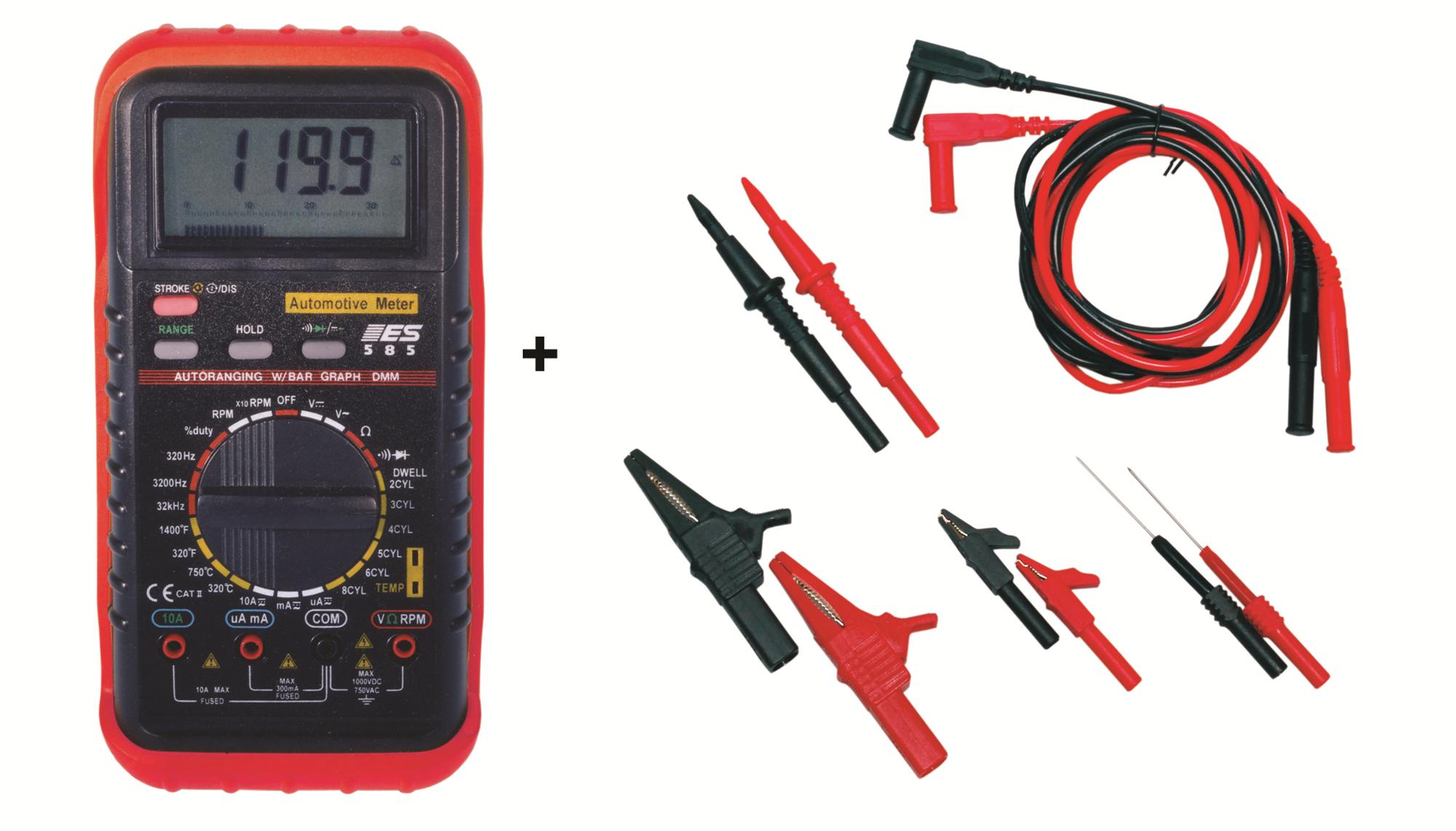

The #585K is a professional-grade tool used for diagnosing electrical, computer, and engine problems on any vehicle. The #585K includes two sets of test leads, RPM pick-up, temperature probe, protective holster, 9-volt battery, instruction manual, and carrying case. Inductive RPM pick-up features a five-position adjustable sensitivity switch.
Features:
- 45 Test Ranges, 14 Test Functions
- RPM for DIS & Standard Ignitions
- Dual display w/analog bar graph and digital readings
- Built-in temperature readings
- RPM pick-up & Temperature probe included
- 10 Meg/Ohm Input Impedance
- Dual Fuse Protection
- Safety Leads & Jacks
- Built-in Tilt Stand
- 9V Battery Installed
Test Ranges:
- DC Volts: 0-320mV, 3.2V, 32V, 320V, 1000V
- AC Volts: 0-3.2V, 32V, 320V, 750V
- DC Amps: 0-320uA, 3.2mA, 32mA, 320mA, 10A
- AC Amps: 0-320uA, 3.2mA, 32mA, 320mA, 10A
- Ohms: 0-320, 3.2K, 32K, 320K, 3.2M, 32M
- RPM: 4 0-3200 RPM, 12,000 RPM x 10
- RPM: 2/DIS 0-3200 RPM, 6,000 RPM x 10
- Dwell: 2 cyl, 3 cyl, 4cyl, 5 cyl, 6 cyl, 8 cyl
- Duty Cycle: 1.0% - 90%
- Frequency: 0-320Hz, 3200Hz, 32kHz
- Temp: -20C to 320C, -20C to 750C
- Continuity: Audible Beep
- Diode: Diode Test
