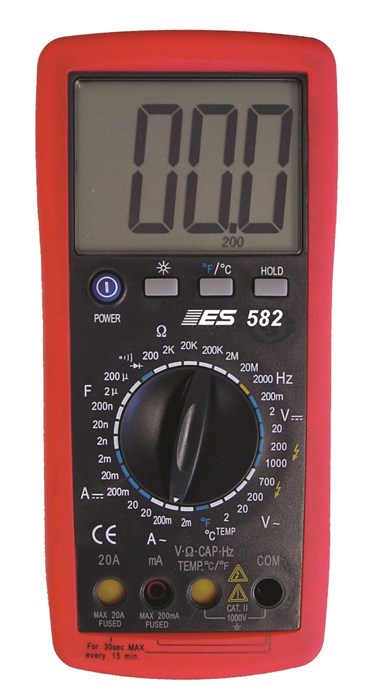

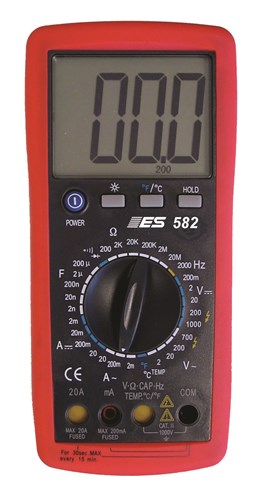

582 Deluxe DMM w/Amp Shutters
Features:
- Huge 2-inch LCD display, Easy to see from across the room
- The display is backlit for use in dark spaces
- Amp Shutters prevent mistaken operation, improve safety, and save fuses by blocking unused amp jacks!
- Great meter for electrical troubleshooting
- 11 Test Functions, 33 Test Ranges
- Measures temp in both F and C, Probe Included
- Desirable 20 Amp Test Range
- Modern Design, The protective holster is built in
- Data Hold

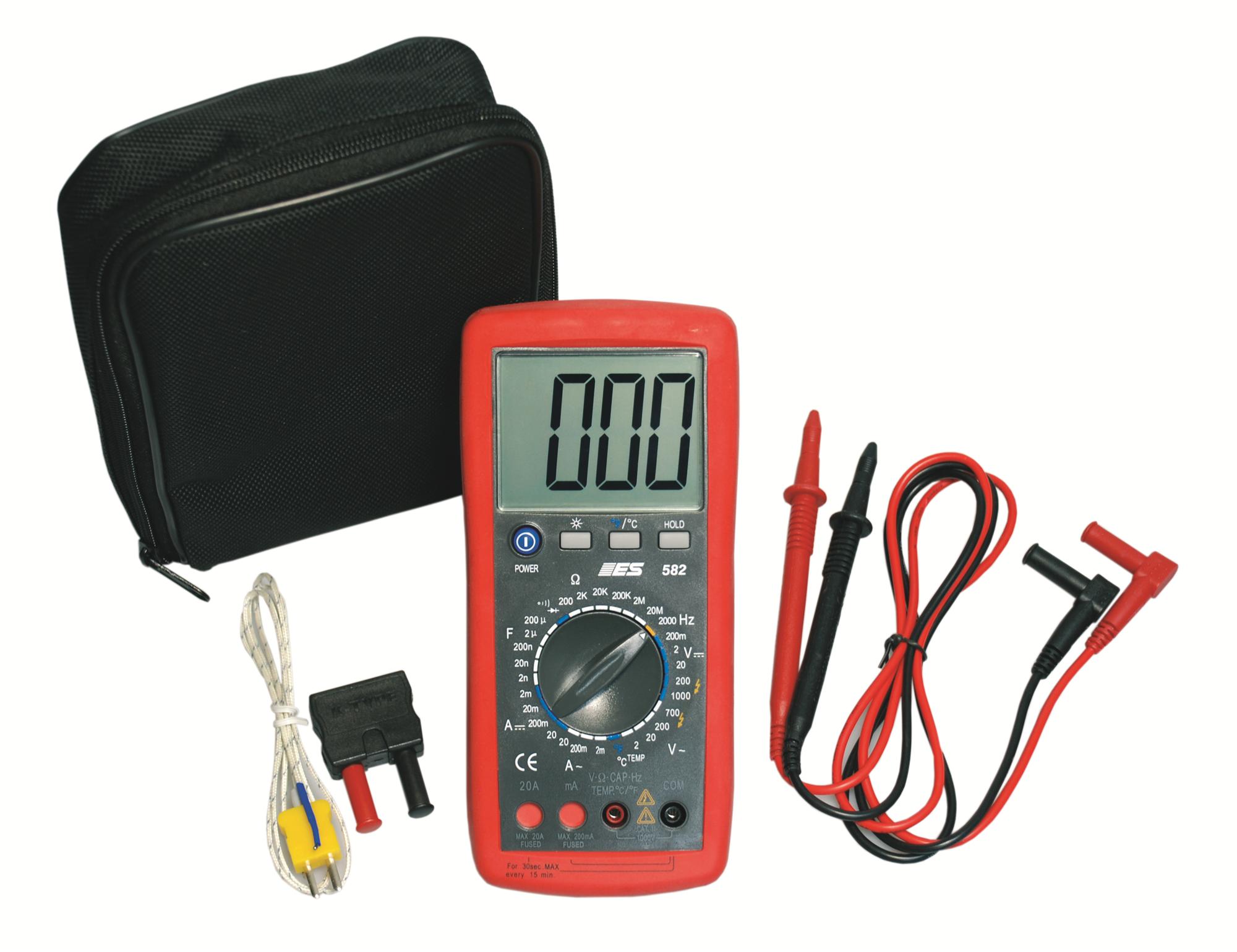

- Carrying Case, Test Leads, Temp Probe, Instructions, and Battery Included
Test Functions:
- AC/DC Voltage
- Resistance
- AC/DC Current
- Temperature in C and F
- Frequency (Hz)
- Capacitance
- Continuity
- Diode Test
Test Ranges:
- DC Volts: 0-200mV, 2V, 20V, 200V, 1000V
- AC Volts: 0-2V, 20V, 200V, 700V
- DC Amps: 0-2mA, 20mA, 200mA, 20A
- AC Amps: 0-2mA, 20mA, 200mA, 20A
- Ohms: 0-200, 2K, 20K, 200K, 2M, 20M
- Capacitance: 0-2nF, 20nF, 200nF, 2uF, 200uF
- Frequency: 0-20kHz
- Temperature: -4F to 1400F, -20C to 760C
- Continuity: Continuity Beep - under 50 Ohms
- Diode: Diode Test
