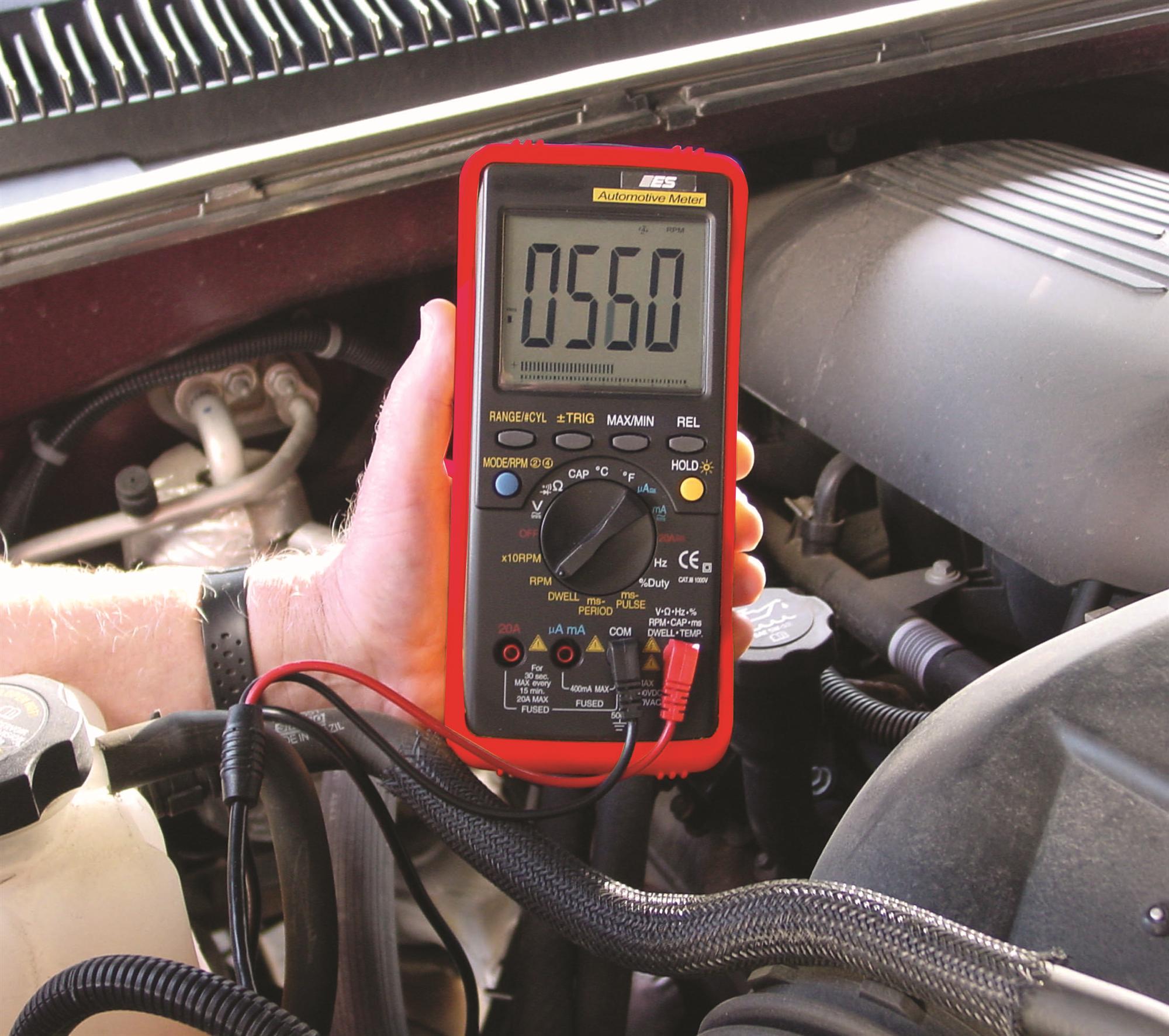

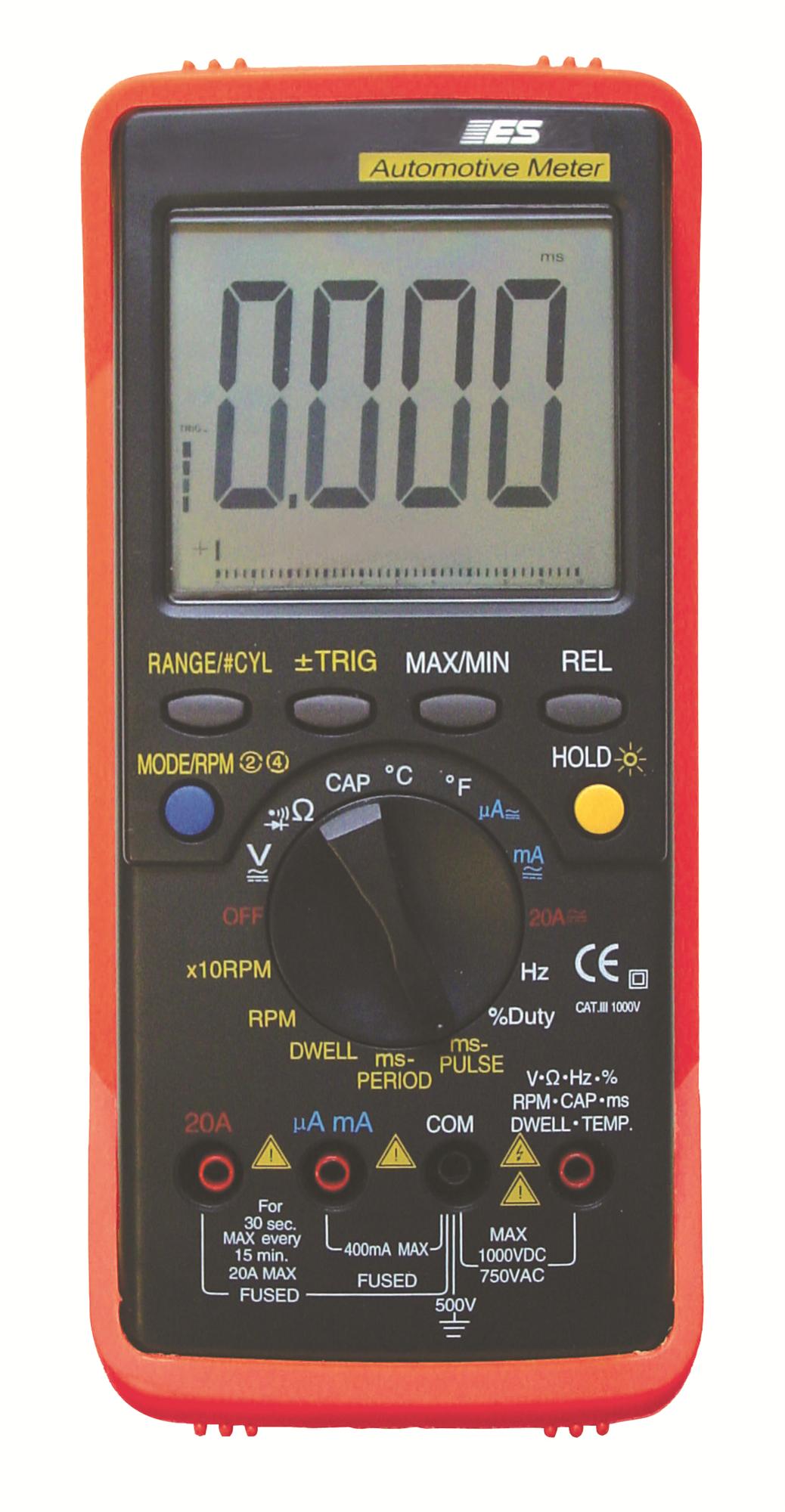

595 Pro Model Automotive Meter W/PC Interface

Our Price $276.15

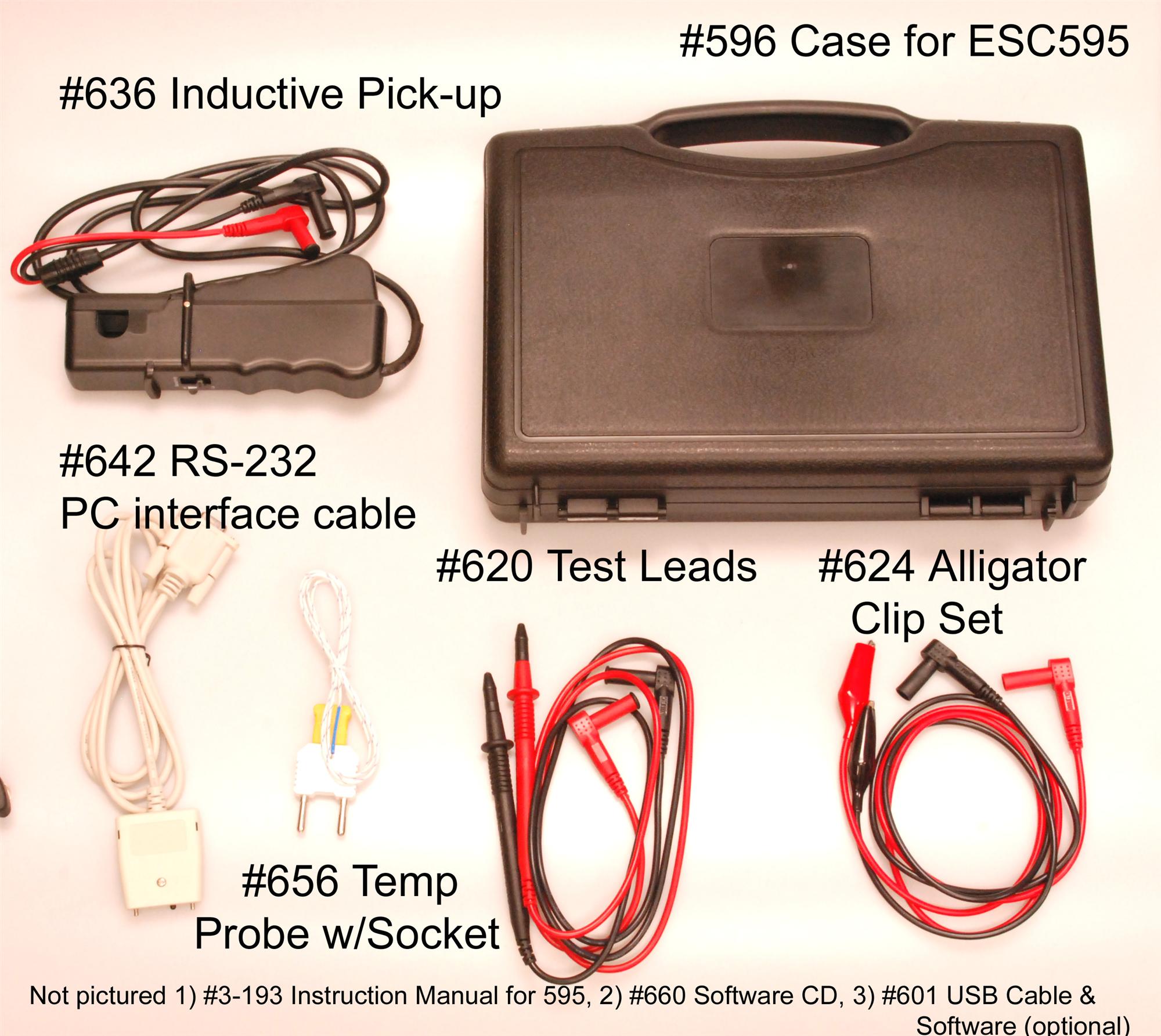

The #595 is a premier automotive diagnostic tool. It is equipped with the latest testing capabilities, including Milliseconds Pulse Width, for measuring the on-time of fuel injectors. The #595 Features a huge LCD display with a bar graph for easy viewing. This meter can be interfaced with your PC or Notebook computer for enhanced diagnostics and data presentation. The software and computer interface cable are included for free! the #595 includes two sets of test leads, RPM pick-up, temperature probe, software CD, interface cable, protective holster, 9-volt battery, instruction manual, and hard storage case. Inductive RPM pick-up features a five-position, adjustable sensitivity switch.

Features:

  • CATIII 1000 Volt Approved & Safety Rated
  • 58 Test Ranges, 16 Test Functions
  • Huge LCD Display w/Analog Bar Graph, Large Digits, and Brilliant Backlighting
  • mS Pulse Width for furl Injector ON-TIME
  • Max/Min Function Captures High/Low Readings For Better Diagnostic Capability
  • 4 Step Adjustable Trigger Levels
  • RS-232 PC Interface
  • Desirable 20 Amp Fuse Test Range
  • Special Access panels For Fuses
  • hard Storage Case For Safe Storage
  • Auto Power-Off, Saves Batteries
  • Safe For Use On Hybrids and EV's

Test Ranges:

  • DC Volts: 0-400mV, 4V, 40V, 400V, 1000V
  • AC Volts: 0-400mV, 4V, 40V, 400V, 750V
  • DC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
  • AC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
  • Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
  • Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
  • RPM 4 : 0-4,000 RPM, 12,000 RPM x 10
  • RPM2/DIS: 0-4,000 RPM, 6,000 RPM x 10
  • Dwell: 1,2,3,4,5,6,8,10, & 12 cyl
  • Frequency: 0-5Hz, 50Hz, 500Hz, 5kHz, 30kHz
  • Duty Cycle: 0.1% - 99.9%
  • mS Pulse Width: 2.0mS - 10.0mS
  • Period: 2.0mS - 20.0mS
  • Temperature: -4F to 1400F, -20C to 760C
  • Continuity: Audible Beep
  • Diode Test: Diode Test
